Hybridné moduly Mitsubishi

Firma Mitsubishi patrí medzi najväčších producentov hybridných konových stupňov na svete. Ucelený prehľad o jej produktoch prináša nasledujúca tabuľka.

Hybridný modul Frekvenčný rozsah Max BW P out min.W P in mW Trieda zosilňovača Púzdro
M57704EL 335-360 13 200 C H3A
M57704H 450-470 13 200 C H3A
M57704L 400-420 13 200 C H3A
M57704M 420-450 420-450 13 200 C H3A
M57704SH 490-512 13 200 C H3A
M57704SL 13 200 C H3A
M57704UH 470-490 13 200 C H3A
M57706 145-175 8 200 C H2
M57706L 135-145 144-160 8 200 C H2
M57710A 156-160 152-164 28 200 C H2
M57713 144-148 17 200 AB H3B
M57714 450-470 440-470 7 100 C H3A
M57714EL 335-360 7 100 C H3A
M57714M 430-450 7 100 C H3A
M57714UH 470-490 7 100 C H3A
M57715 144-148 13 200 C H2
M57716 430-450 17 200 AB H3C
M57716L 360-380 17 200 AB H3C
M57719 145-175 14 200 C H2
M57719L 135-145 14 200 C H2
M57719N 142-163 140-165 14 200 C H2
M57721 450-512 7 10 AB H12
M57721L 350-400 335-410 7 10 AB H12
M57721M 400-450 7 10 AB H12
M57721UL 335-370 7 10 AB H12
M57726 144-148 140-152 43 400 C H2B
M57726R 144-148 140-152 43 400 C (rev.)
M57727 144-148 140-150 37 300 AB H3B
M57729 430-450 420-450 30 300 C H3A
M57729EL 335-360 30 300 C H3A
M57729GL 326-346 30 300 C H3A
M57729H 450-470 440-470 30 300 C H3A
M57729L 400-420 30 300 C H3A
M57729SH 490-512 30 300 C H3A
M57729UH 470-490 30 300 C H3A
M57729UL 380-400 30 300 C H3A
M57732 144-175 7 20 AB H12A
M57732L 135-160 130-166 7 20 AB H12A
M57735 50-54 48-56 17 200 AB H3B
M57737 144-148 140-152 30 200 C H2
M57737R 144-148 140-152 30 200 C (rev.)
M57739C 825-851 6 30 C H26
M57741H 164-175 155-185 28 300 C H2
M57741L 148-160 140-170 28 200 C H2
M57741M 156-168 148-175 28 300 C H2
M57744 905-915 900-920 13 400 C H3A
M57745 430-450 425-450 33 300 AB H3C
M57747 144-148 140-150 13 200 C H6
M57752 430-450 13 200 C H3A
M57755 806-866 800-875 10 100 C H3A
M57759 890-915 890-915 0.2 2 C
M57762 1240-1300 1240-1300 18 1000 AB H3B
M57764 806-825 800-830 20 400 C H3A
M57774 200-225 219-232 30 300 C H2
M57774S 185-200 30 300 C H2
M57775 806-866 0.4 3 AB H8A
M57782 825-851 805-860 7 1 H11
M57783H 7 50 AB H13
M57783L 135-160 125-175 7 50 AB H13
M57785H 162-174 7 50 AB H12A
M57785L 135-150 127-163 7 50 AB H12A
M57785M 150-162 7 50 AB H12A
M57786H 470-512 465-520 7 50 AB H12
M57786L 380-400 7 50 AB H12
M57786M 430-470 425-480 7 50 AB H12
M57788H 450-470 430-490 45 400 C H3A
M57788L 400-430 390-450 45 400 C H3A
M57788M 430-450 410-460 45 400 C H3A
M57788MR 430-450 410-460 45 400 C (rev.)
M57788SH 490-512 40 400 C H3A
M57788UH 470-490 40 300 C H3
M57791 890-915 880-930 7 1 H11
M57792 806-870 800-870 20 400 C H3A náhrada M67760LC
M57796H 150-175 140-190 7 300 AB H14
M57796MA 144-148 135-160 7 200 AB H14
M57797H 450-470 7 200 AB H14
M57797L 400-430 7 200 AB H14
M57797MA 440-450 420-460 7 200 AB H14
M57797SH 490-512 7 200 AB H14
M57799H 470-512 6 40 AB H13
M57799L 400-430 6 40 AB H13
M57799M 430-470 6 40 AB H13
M67702 150-175 60 5W C H17
M67703H 450-470 50 10W C H17
M67703M 430-450 50 10W C H17
M67703SH 490-512 50 10W C H17
M67703UH 470-490 460-495 50 10W C H17
M67705H 470-512 460-520 7 20 AB H13A
M67705L 400-430 400-450 7 20 AB H13A
M67705M 430-470 420-490 7 20 AB H13A
M67706 806-870 790-895 4 100 C H13
M67709 430-470 13 10 C H16
M67709L 350-390 310-395 13 10 C H16
M67710H 150-175 140-190 7 50 AB H13
M67710L 135-160 7 50 AB H13
M67711 1240-1300 16 1000 C H3B
M67712 220-225 219-239 30 200 AB H3B
M67715 1240-1300 1220-1320 1.5 10 AB H13A
M67717
M67723 220-225 210-250 7 20 AB H13
M67727 144-148 60 500 AB H17
M67728 430-450 420-470 60 10W AB H17
M67730L 174-200 160-210 30 300 C H2
M67732 1240-1300 1 10 AB H13
M67736 935-941 12 5 H3B
M67741H 150-175 140-180 30 200 C H2
M67741L 150-175 140-180 30 200 C H2
M67742 66-88 60-92 30 500 C H2
M67743H 77-88 74-92 7 30 AB H
M67743L 68-81 62-85 7 30 AB H13A
M67746 144-148 60 300 C H2
M67748H 150-175 7 20 AB H27
M67748HR 150-175 7 20 AB H27R
M67748L 135-150 125-155 7 20 AB H27
M67748LR 135-150 125-155 7 20 AB (rev.)
M67749H 440-470 7 20 AB H27
M67749HR 440-470 7 20 AB H27R
M67749L 400-430 7 20 AB H27
M67749M 430-450 7 20 AB H27
M67749SH 490-512 7 20 AB H27
M67749UH 470-490 10 20 AB H27
M67754 824-849 810-860 6 1 C H11
M67755L 134-150 7 2 AB H12A
M67759 872-905 6 1 C
M67760HC 896-941 20 400 AB, MOS H3B
M67760LC 806-870 25 400 AB, MOS H3B
M67764 940-960 925-970 12 7 C H3A
M67766A 820-850 820-855 6 2 AB H3A
M67766C 806-825 6 10 AB H3
M67769C 890-915 890-928 15 1 C H3
M67776H 896-941 860-950 8 4 C H11
M67776L 806-870 790-890 8 4 C H11
M67781H 150-175 40 300 C H2
M67781L 135-160 125-160 40 300 C H2
M67796 1240-1300 1.5 10 C H27
M67797 890-915 2 10
M67799HA 450-470 430-470 7.5 20 FET H46
M68702H 150-175 60 300 C H2
M68702L 135-160 60 300 C H2
M68703HA 440-450 50 300 C H3
M68703SHA 470-490 50 300 C H3
M68706 250-270 30 300 C H3
M68707L 215-230 7 20 AB H12
M68710H 450-470 440-480 2 20 FET H46
M68710L 400-430 390-440 2 20 FET H46
M68710UH 470-520 2 20 C H46
M68712N 142-163 140-165 2 20 FET H46
M68719 1240-1300 16 100 AB H3
M68729 220-245 30 300 C H2
M68731H 150-175 7 50 AB, MOS H46
M68731HM 145-174 6.5 50 AB, MOS H46
M68731L 135-155 7 50 AB, MOS H46
M68731N 142-163 7 50 AB, MOS H46
M68732H 450-470 7 50 AB, MOS H46
M68732HA 440-490 7 50 AB, MOS H46
M68732L 400-430 7 50 AB, MOS H46
M68732SH 490-512 7 50 AB, MOS H46
M68732SL 330-380 7 50 AB, MOS H46
M68732UH 470-490 7 50 AB, MOS H46
M68732UL 380-400 7 50 AB, MOS H46
M68762H 440-490 30 300 C H3
M68762L 400-450 30 300 C H3
M68762SH 470-520 30 300 C H3
M68769H 440-490 45 300 C H3

Nová séria MOSFET výkonových modulov Mitsubishi

Hybridný modul Frekvenčný rozsah Vcc P out W Eff. P v mW Púzdro Katalóg.list
VKV rozsah, nízkovýkonové
RA07H0608M 68-88 12.5 V 7 W 38% 30 H46 pdf
RA07M1317M 135-175 7.2 V 7 W 45% 20 H46 pdf
RA08N1317M 135-175 9.6 V 8 W 35% 20 H46 pdf
RA07M2127M 215-270 7.2 V 7 W 45% 20 H46 pdf
VKV rozsah, vysokovýkonové
RA30H06080M 68-88 12.5 V 30 W 40% 50 H2 pdf
RA13H1317M 135-175 12.5 V 13 W 40% 50 H2 pdf
RA30H1317M 135-175 12.5 V 30 W 40% 50 H2 pdf
RA60H1317M 135-175 12.5 V 60 W 40% 50 H2 pdf
RA35H1516M 154-162 12.5 V 35 W 47% 50 H2 pdf
RA30H2127M 210-270 12.5 V 30 W 40% 50 H2 pdf
UKV rozsah, nízkovýkonové
RA07H3340M 330-400 12.5 V 7 W 40% 20 H46 pdf
RA07M3340M 330-400 7.2 V 7 W 40% 20 H46 pdf
RA07H4047M 400-470 12 V 7 W 40% 20 H46 pdf
RA07M4047M 400-470 7.2 V 7 W 40% 50 H46 pdf
RA07H4452M 440-520 12 V 7 W 40% 50 H46 pdf
RA07M4452M 440-520 7.2 V 7 W 40% 50 H46 pdf
UKV rozsah, vysokovýkonové
RA13H3340M 330-400 12.5 V 13 W 40% 50 H2 pdf
RA30H3340M 330-400 12.5 V 30 W 40% 50 H2 pdf
RA13H4047M 400-470 12.5 V 13 W 40% 50 H2 pdf
RA30H4045MR 400-450 12.5 V 30 W 40% 50 H2R pdf
RA45H4045MR 400-450 12.5 V 45 W 35% 50 H2 pdf
RA30H4047M 400-470 12.5 V 30 W 40% 50 H2S pdf
RA45H4047M 400-470 12.5 V 45 W 35% 50 H2 pdf
RA13H4452M 440-520 12.5 V 13 W 40% 50 H2 pdf
RA30H4452M 440-520 12.5 V 30 W 40% 50 H2S pdf
RA45H4452M 440-450 12.5 V 45 W 35% 50 H2 pdf
800 MHz pásmo
RA03M8087M 806-870 7.2 V 3.6 W 32% 50 H11 pdf
RA20H8087M 806-870 12.5 V 20 W 25% 50 H2 pdf
RA06H8285M 820-851 12.5 V 6 W 35% 1 H11 pdf
RA03M8894M 889-941 7.2 V 3.6 W 32% 50 H11 pdf
RA13H8891MA 889-915 12.5 V 13 W 30% 20 H2 pdf
RA13H8891MB 880-915 12.5 V 13 W 35% 10 H11 pdf
RA20H8994M 896-941 12.5 V 20 W 25% 50 H2 pdf
1200 MHz pásmo
RA18H1213G 1240-1300 12.5 V 18 W 20% 200 H2 pdf




H2

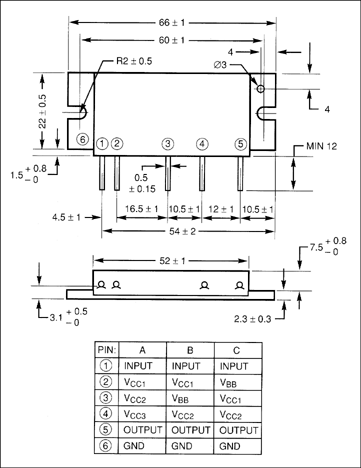

H3A,B,C

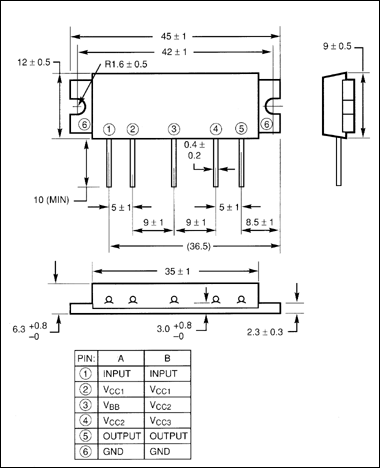

H13

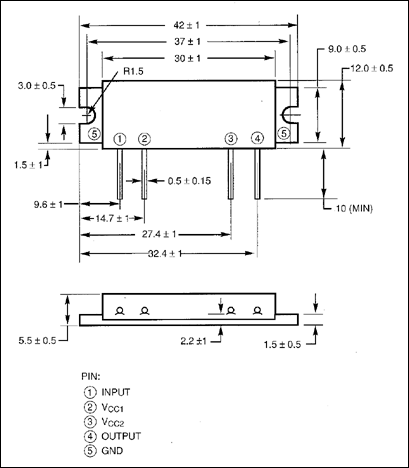

H14

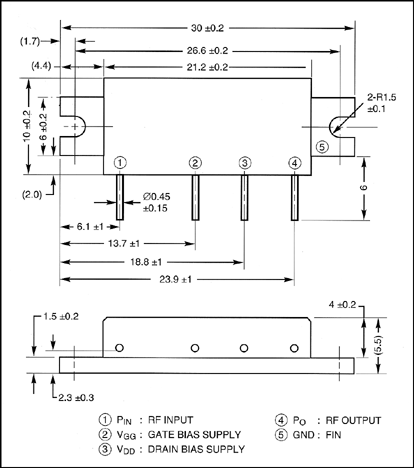

H46
